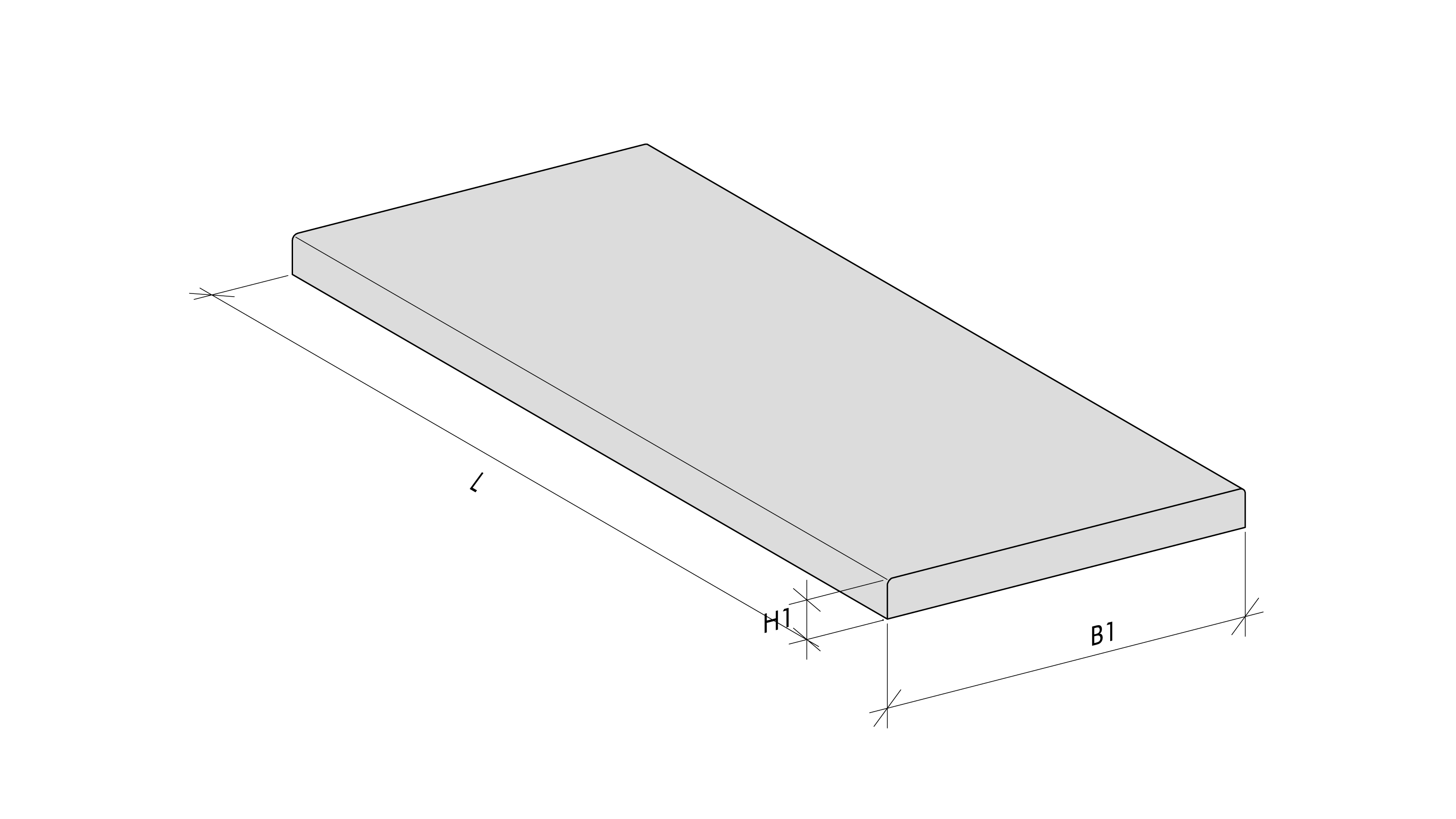

Holonite window sills are available in three different variants: Flat, L-type and Angled. They are also available in various colours and textures. They are delivered to order and are processed as required, e.g. cut to length and with holes or recesses.
| Width (B) | Height (H1) | Max. length (L) |
| 105 | 15 | 2950 |
| 125 | 15 | 2950 |
| 150 | 15 | 2950 |
| 170 | 15 | 2950 |
| 175 | 15 | 2950 |
| 190 | 15 | 2950 |
| 200 | 15 | 2950 |
| 225 | 15 | 2950 |
| 250 | 15 | 2950 |
| 260 | 15 | 2950 |
| 300 | 15 | 2950 |
| 350 | 15 | 2550 |
| 370 | 15 | 2550 |
All dimensions are in millimeters.
| Width (B) | Height (H1) | Max. length (L) |
| 100 | 20 | 2950 |
| 105 | 20 | 2950 |
| 125 | 20 | 2950 |
| 140 | 20 | 2950 |
| 150 | 20 | 2950 |
| 170 | 20 | 2950 |
| 175 | 20 | 2950 |
| 190 | 20 | 2950 |
| 200 | 20 | 2950 |
| 220 | 20 | 2950 |
| 225 | 20 | 2950 |
| 240 | 20 | 2950 |
| 250 | 20 | 2950 |
| 260 | 20 | 2950 |
| 300 | 20 | 2950 |
| 320 | 20 | 2550 |
| 350 | 20 | 2950 |
| 370 | 20 | 2550 |
| 400 | 20 | 2550 |
| 420 | 20 | 2150 |
| 450 | 20 | 2550 |
| 500 | 20 | 2020 |
| 550 | 20 | 2050 |
| 600 | 20 | 2050 |
All dimensions are in millimeters.
| Width (B) | Height (H1) | Max. length (L) |
| 150 | 25 | 2950 |
| 170 | 25 | 2000 |
| 200 | 25 | 2950 |
| 220 | 25 | 2950 |
| 250 | 25 | 2950 |
| 300 | 25 | 2950 |
| 500 | 25 | 1650 |
All dimensions are in millimeters.
Do you need guidelines for the correct handling and processing/assembly of our products? Then take a look at our downloads.
