Window sills (exterior) Window sills type W,Z

Product information Window sills type W,Z

Holonite supplies stronger window sills such as type W, X, Y and Z for traditionally designed buildings. These window sills hollowed out on the underside are intended as a means of cutting down on materials. These window sills are also available without a hollowed-out section for a surcharge. Window sill type Z is perfect for combining with a type Z bracket to create a continuous band along the façade.

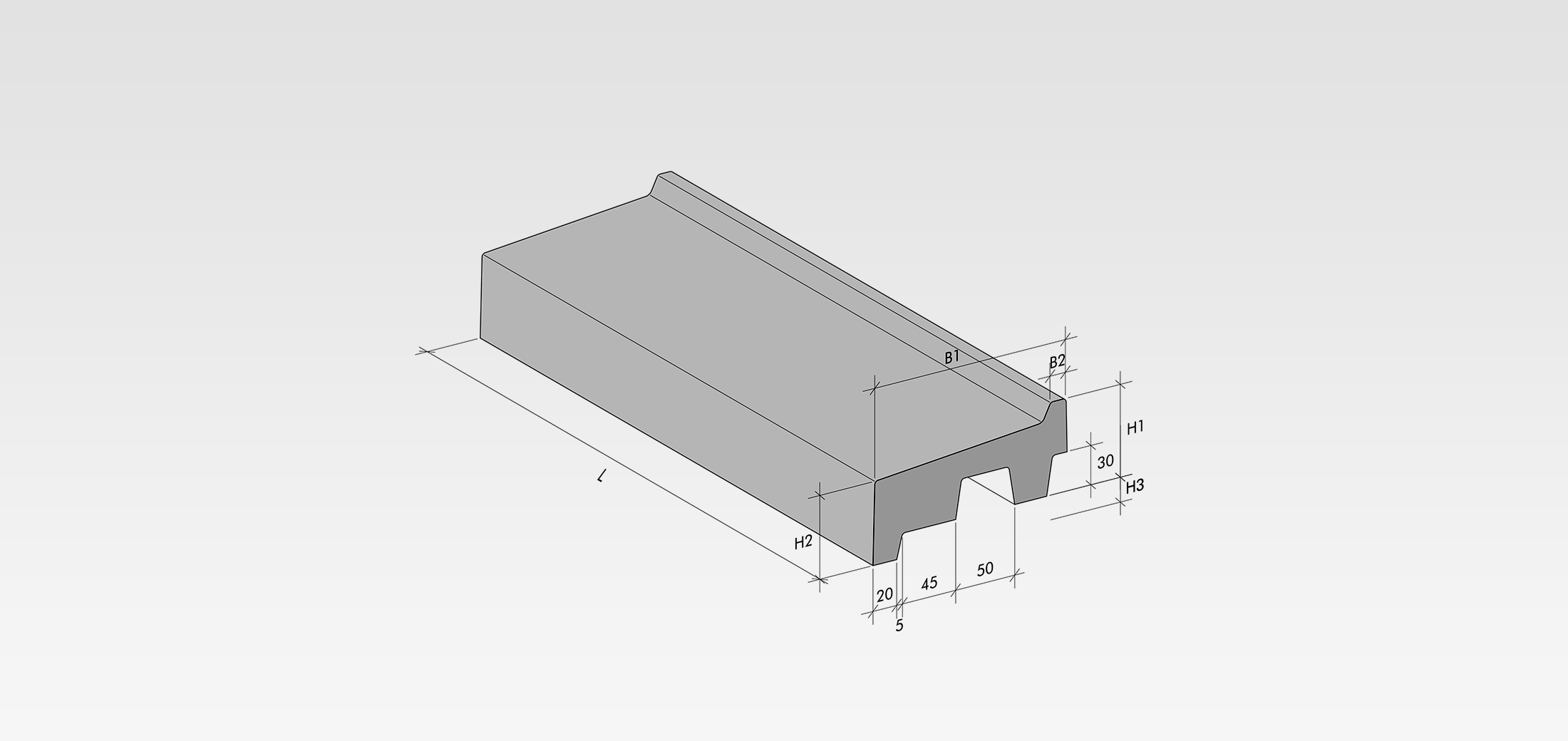

Dimensions

To CAD & Specification Service
Type Width (B1) Width (B2) Height (H1) Height (H2) Height (H3) Max. length (L)
W 162 13 96 64 15 2000
Z 162 13 71 64 19 2550

All dimensions are in millimeters.

Colours The product is available for color and textures

Basic colors
  • 1White
  • 5Earth brown
  • 6Light grey
  • 7Anthracite
  • 11Sand yellow
  • 20Dark grey
  • 23Brown grey
Natural
  • 14Natural red brown
  • 15Natural black
  • 16Natural sand yellow
  • 21Natural dark grey
  • 25Natural brown grey
Texture
  • 8Tarente
  • 10Terra
  • 12Sabbia
  • 13Savona
  • 22Misto
  • 24Marrone

Download Documentation

Do you need guidelines for the correct handling and processing/assembly of our products? Then take a look at our downloads.

Brochure Download

Order products

That is possible, send us your order and we will contact you as soon as possible.
