Wall covering elements Wall cover

Product information Wall cover

The Holonite wall covering element is a two-sided, free-draining component that can be processed so that it is symmetrical.

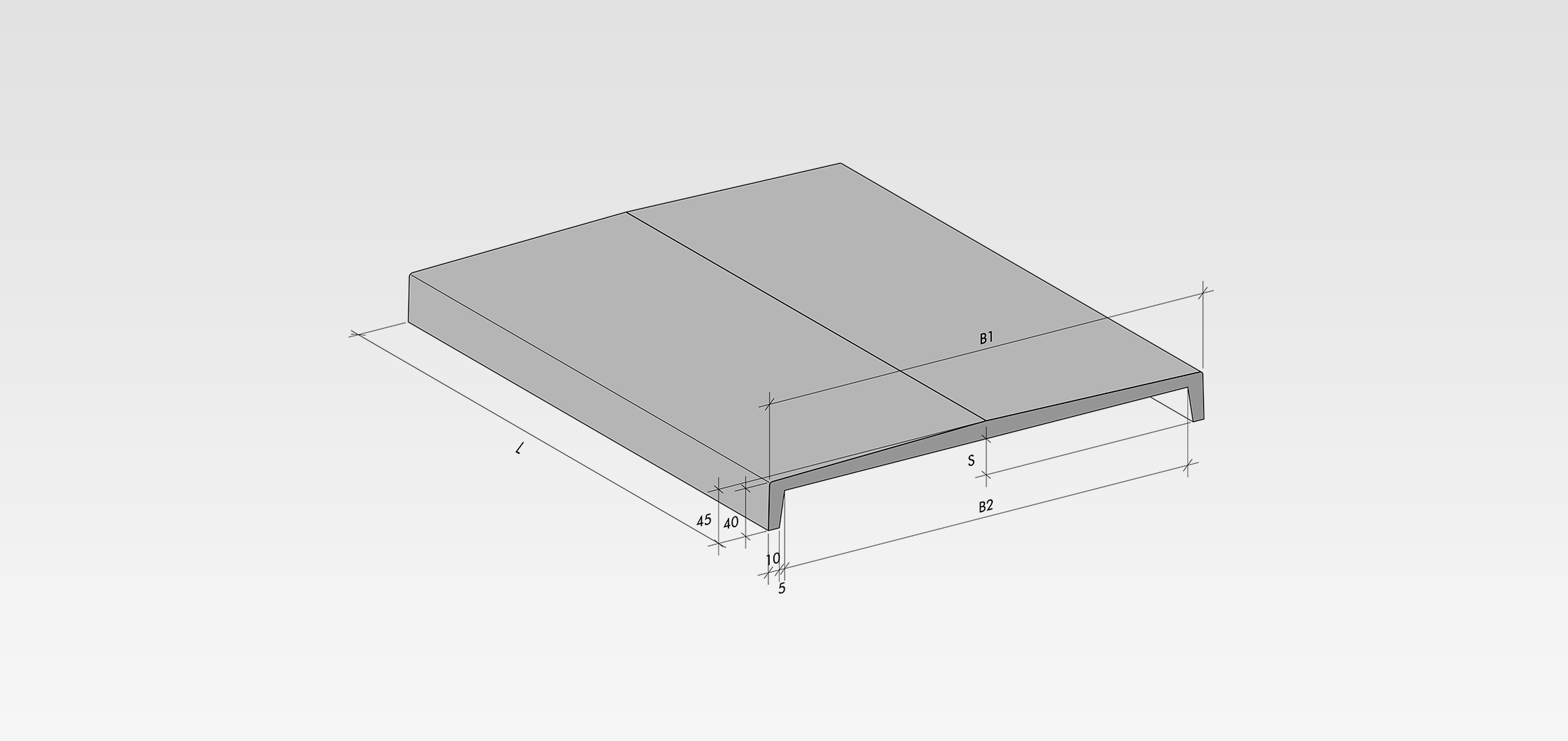

Dimensions

To CAD & Specification Service

Length until 1000 mm
Type	Width (B1)	Width (B2)	Max. wall thickness	Rebate (S)
MA 150	150	120	110	30
MA 170	170	140	130	30
MA 200	200	170	160	30
MA 220	220	190	180	30
MA 260	260	230	220	30
MA 300	300	270	260	30
MA 340	340	310	300	30
MA 360	360	330	320	30
MA 400	400	370	360	30
MA 420	420	390	380	30
MA 460	460	430	420	30
MA 500	500	470	460	30
MA 520	520	490	480	30

All dimensions are in millimeters.

Length until 1500 mm
Type	Width (B1)	Width (B2)	Max. wall thickness	Rebate (S)
MA 150	150	120	110	30
MA 170	170	140	130	30
MA 200	200	170	160	30
MA 220	220	190	180	30
MA 260	260	230	220	30
MA 300	300	270	260	30
MA 340	340	310	300	30
MA 360	360	330	320	30
MA 400	400	370	360	30
MA 420	420	390	380	30
MA 460	460	430	420	30
MA 500	500	470	460	30
MA 520	520	490	480	30

All dimensions are in millimeters.

End piece until 500 mm
Type	Width (B1)	Width (B2)	Max. wall thickness	Rebate (S)
MA 150	150	120	110	30
MA 170	170	140	130	30
MA 200	200	170	160	30
MA 220	220	190	180	30
MA 260	260	230	220	30
MA 300	300	270	260	30
MA 340	340	310	300	30
MA 360	360	330	320	30
MA 400	400	370	360	30
MA 420	420	390	380	30
MA 460	460	430	420	30
MA 500	500	470	460	30
MA 520	520	490	480	30

All dimensions are in millimeters.

Colours The product is available for color and textures

Basic colors

6Light grey
7Anthracite
20Dark grey
1White
5Earth brown
23Brown grey
11Sand yellow

Natural

16Natural sand yellow
21Natural dark grey
14Natural red brown
15Natural black
25Natural brown grey

Texture

12Sabbia
10Terra
13Savona
22Misto
24Marrone
8Tarente

Download Documentation

Do you need guidelines for the correct handling and processing/assembly of our products? Then take a look at our downloads.

Brochure Download

Order products

That is possible, send us your order and we will contact you as soon as possible.
