Thresholds Wheelchair thresholds

Product information Wheelchair thresholds

Holonite wheelchair thresholds make it easier for people who use rollators or wheelchairs to step over a threshold. Due to the rounded shape, these thresholds are very suitable for hospitals, nursing homes and (adapted) homes. The rounding ensures that aids, such as rollators and wheelchairs, slide easily over the threshold.

Different sizes and colours

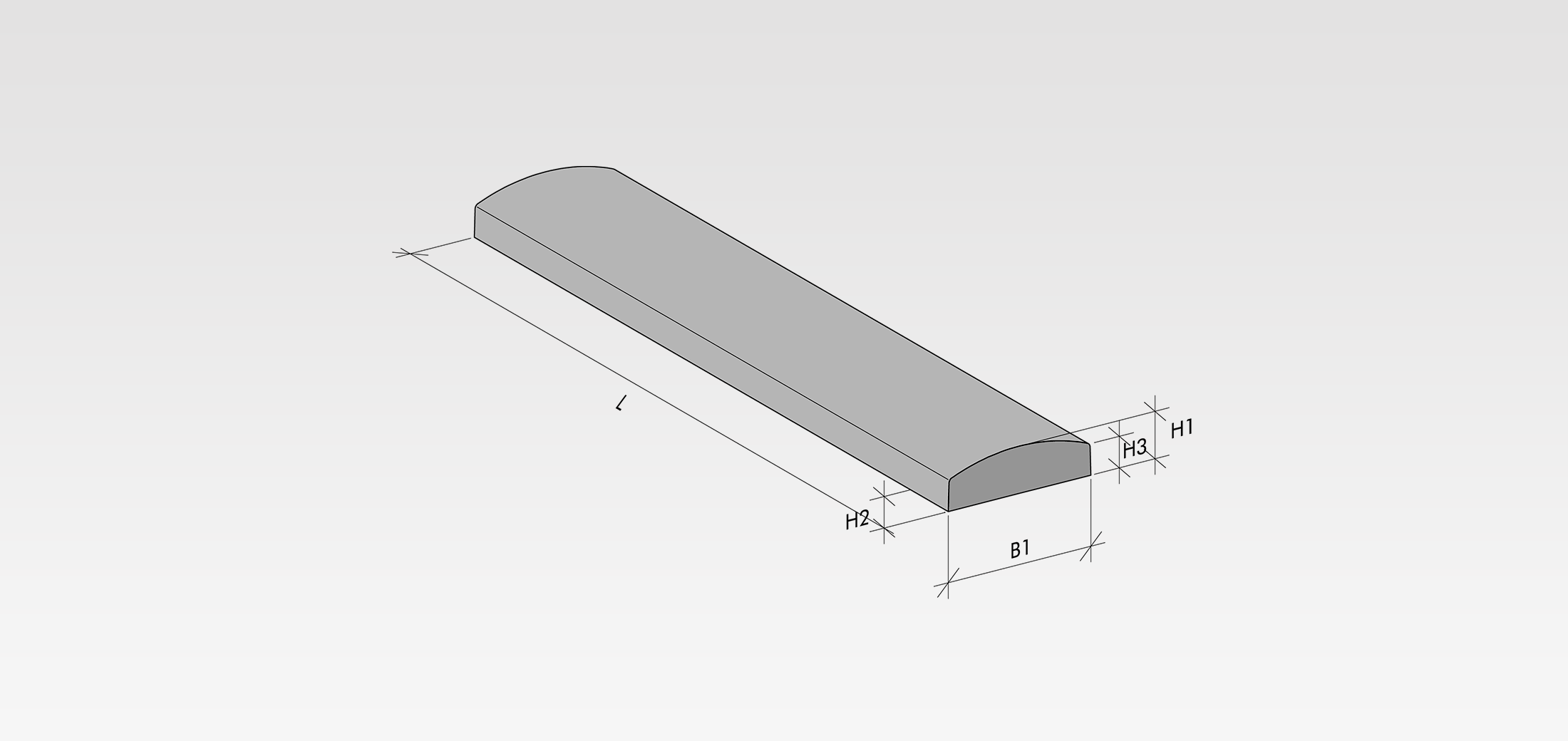

Holonite supplies wheelchair thresholds in different sizes and types. The height of the threshold can be selected, as well as the curvature of the threshold. We supply thresholds up to 175 mm wide and a maximum of 2550 mm long. In the image and table below you will find the different sizes, shown in millimetres.

We supply the wheelchair thresholds in different basic colours and natura colours, so that they match the design of your spaces. Are you unsure about the size or colour? Please contact us to discuss your wishes. You can also download the documentation or order forms directly.

Dimensions

To CAD & Specification Service
Type Width (B1) Height (H1) Height (H2) Heighte (H3) Max. length (L)
4A 40 20 15 15 2550
4B 40 35 25 25 2550
5A 50 25 15 15 2550
5B 50 45 30 30 1950
5C 50 35 30 30 2550
5D 55 25 15 15 2550
6A 60 20 15 15 2550
6B 60 35 25 25 2550
7A 70 20 10 10 2550
7B 70 30 20 20 2550
7C 75 50 30 30 1950
8A 85 25 15 15 2550
8B 85 40 30 30 1950
9A 90 20 10 10 2550
9B 90 25 15 15 2550
9C 90 30 20 20 2550
9E 90 50 30 30 2550
10A 100 25 10 10 2550
10B 100 30 20 20 2550
10C 105 25 20 20 2550
10D 105 35 20 20 2550
10E 100 20 10 10 2550
11A 110 25 10 10 2550
11B 110 30 10 10 2550

All dimensions are in millimeters.

Type Width (B1) Height (H1) Height (H2) Heighte (H3) Max. length (L)
11C 115 25 10 10 2550
11D 115 25 20 20 2550
11E 115 40 25 25 2550
11F 115 30 20 20 2550
11G 115 35 15 15 2550
12A 120 20 15 15 2550
12B 125 35 15 15 2550
13A 130 20 10 10 2550
13B 130 30 20 20 2550
14A 140 35 15 15 2550
14B 140 30 20 20 2550
14C 145 25 15 15 2550
15A 150 25 20 20 2550
17A 175 20 10 10 2550

All dimensions are in millimeters.

Colours The product is available for color and textures

Basic colors
  • 1White
  • 2Granbianco
  • 4Grannero
  • 5Earth brown
  • 6Light grey
  • 7Anthracite
  • 11Sand yellow
  • 20Dark grey
  • 23Brown grey
Natural
  • 14Natural red brown
  • 15Natural black
  • 16Natural sand yellow
  • 21Natural dark grey
  • 25Natural brown grey
