Product information Inclined inside door thresholds
Holonite inclined thresholds accommodate for differences in height between two separate rooms. These thresholds are also suitable for use in areas where materials are transported on wheels.
Thresholds Inclined inside door thresholds

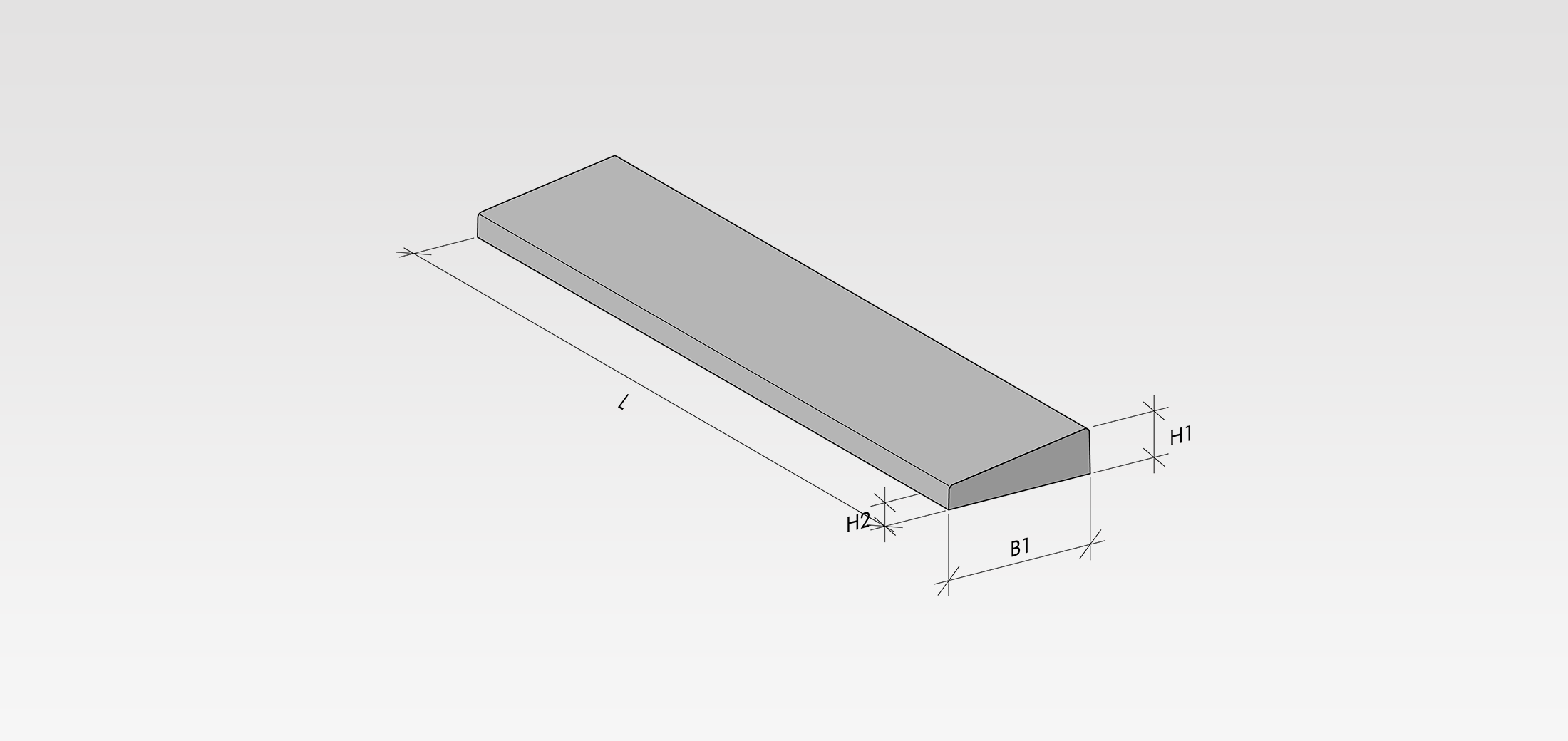

Dimensions
To CAD & Specification Service
| Width (B1) | Height (H1) | Height (H2) | Max. length (L) | |
| 40 | 20 | 15 | 2550 | |
| 45 | 30 | 25 | 2550 | |
| 50 | 25 | 20 | 2550 | |
| 65 | 30 | 25 | 2550 | |
| 80 | 20 | 15 | 2450 | |
| 100 | 20 | 15 | 2550 | |
| 114 | 35 | 20 | 2550 | |
| 120 | 30 | 20 | 2450 | |
| 170 | 55 | 45 | 2350 |
All dimensions are in millimeters.
Colours The product is available for color and textures
Basic colors
- 2Granbianco
- 6Light grey
- 4Grannero
- 7Anthracite
- 20Dark grey
- 1White
- 5Earth brown
- 23Brown grey
- 11Sand yellow
Natural
- 16Natural sand yellow
- 21Natural dark grey
- 14Natural red brown
- 15Natural black
- 25Natural brown grey
Download Documentation
Do you need guidelines for the correct handling and processing/assembly of our products? Then take a look at our downloads.
