Surroundings jambs Surroundings jambs L-type

Product information Surroundings jambs L-type

Holonite L-type surroundings are extremely suitable for sealing the reveals of the window opening. In contrast to our flat surroundings, these contain an extra piece in the shape of an L. With reveal cladding, in addition to an attractive finish, the possibility arises to continue the insulation material far into the cavity. This prevents cold bridges.

Different sizes and colours

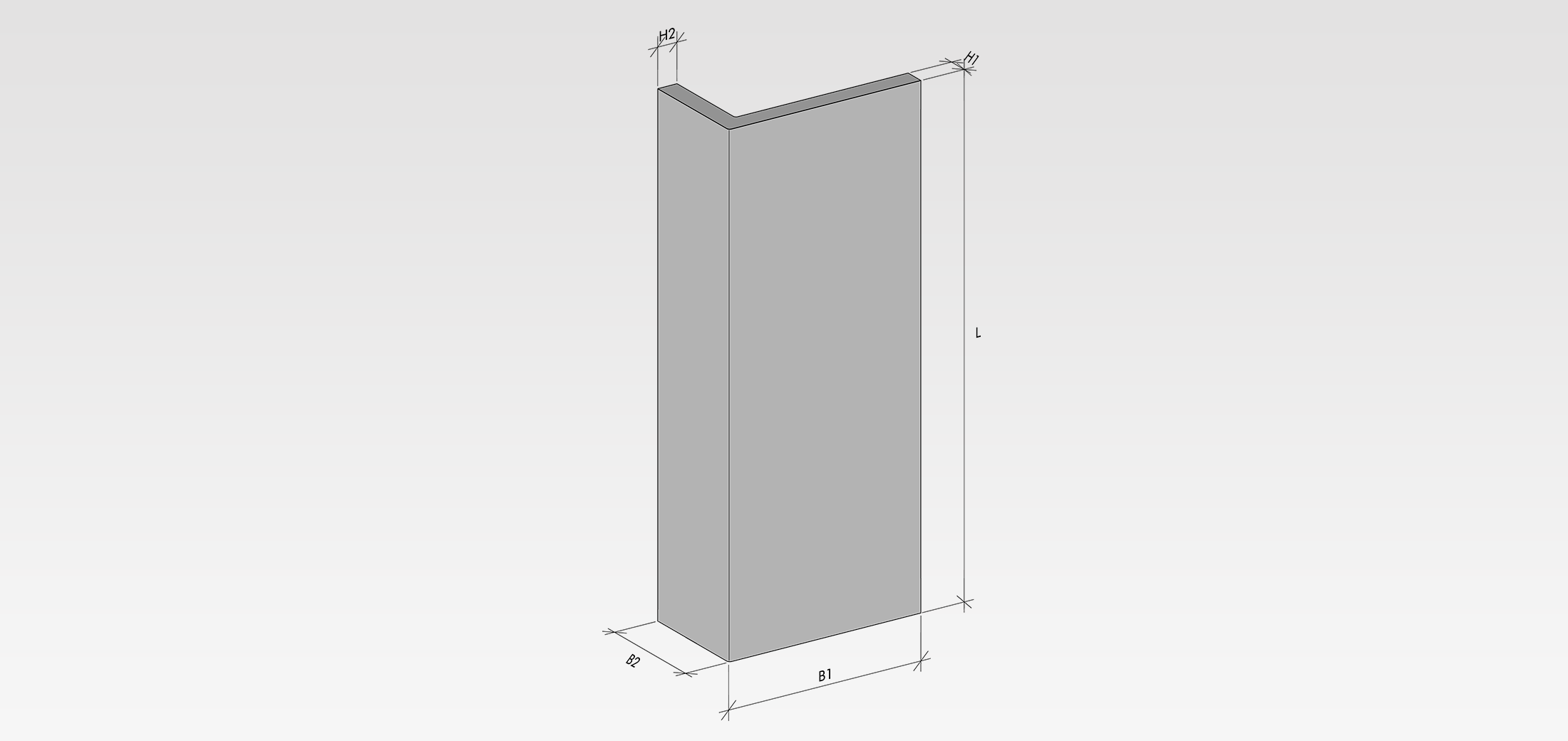

Holonite supplies L-type surroundings with a standard thickness of 20 mm. The widths of the different L-sides are available in variable versions. The maximum length from which you can choose is 2450 mm long. In the image and table below you will find the different sizes, shown in millimetres.

We supply the L-type surroundings in various basic colours, natura colours and textures. Are you unsure about the size or colour? Please contact us to discuss your requirements. You can also download the documentation or order forms directly.

Dimensions

To CAD & Specification Service
Width (B1) Width (B2) Heigth (H1) Heigth (H2) Max. length (L)
150 110 20 20 2450
215 95 20 20 2450
250 133 20 20 2450
250 230 20 20 2450
255 155 20 20 2450

All dimensions are in millimeters.

Colours The product is available for color and textures

Basic colors
  • 6Light grey
  • 20Dark grey
  • 1White
  • 5Earth brown
  • 23Brown grey
  • 11Sand yellow

Download Documentation

Do you need guidelines for the correct handling and processing/assembly of our products? Then take a look at our downloads.

Brochure Download

Order products

That is possible, send us your order and we will contact you as soon as possible.
