A head is the final element of a frame. The form, size and colour of the head is adjusted to correspond to the accompanying window sills and jambs in order to create a single complete frame.
Heads, jambs and window sills are used as frame components. Window surrounds are available in many different sizes.

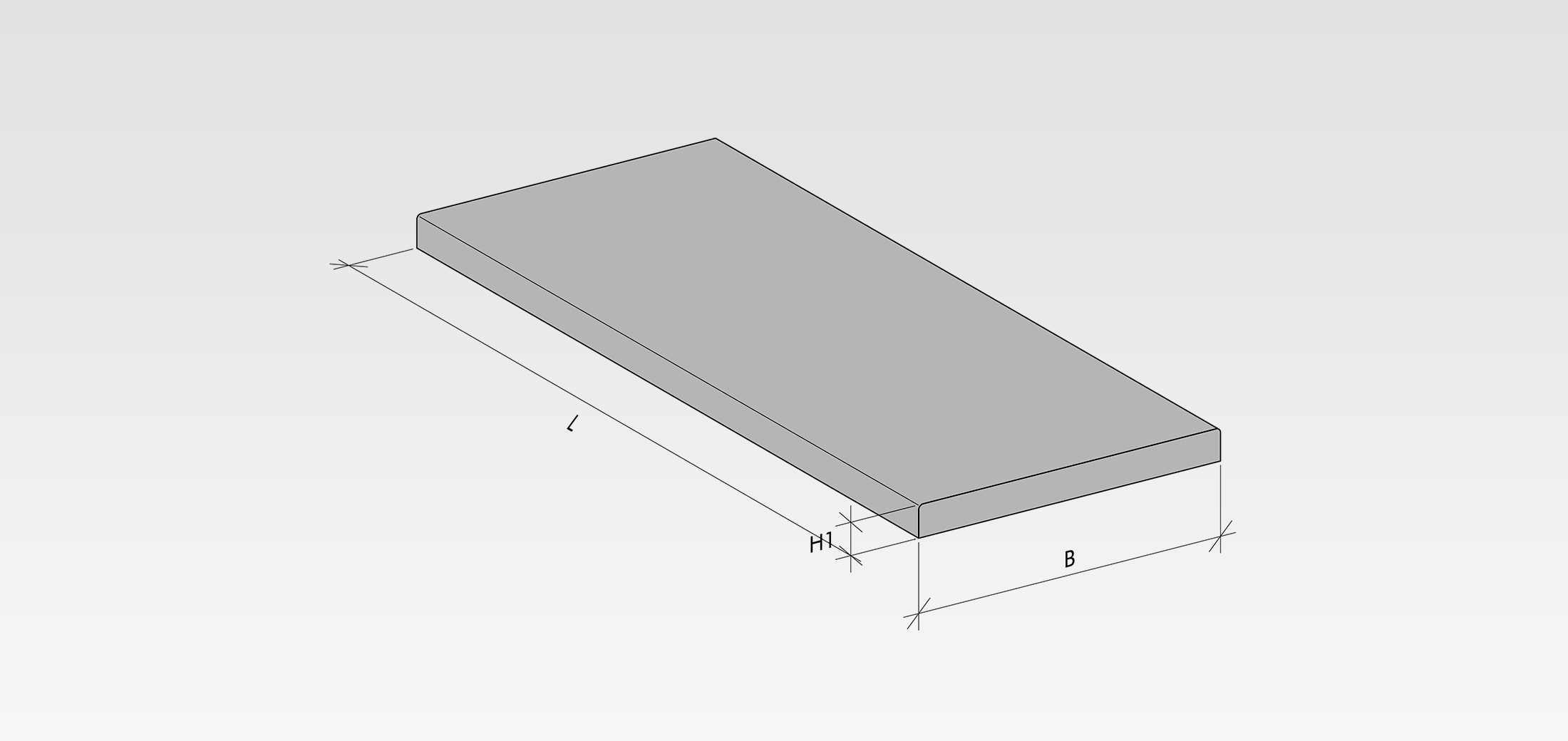

| Width (B1) | Height (H1) | Max. length (L) |
| 100 | 20 | 2950 |
| 125 | 20 | 2950 |
| 140 | 20 | 2950 |
| 150 | 20 | 2950 |
| 160 | 20 | 2950 |
| 170 | 20 | 2950 |
| 180 | 20 | 2950 |
| 190 | 20 | 2950 |
| 200 | 20 | 2950 |
| 220 | 20 | 2950 |
| 240 | 20 | 2950 |
| 250 | 20 | 2950 |
| 260 | 20 | 2950 |
| 280 | 20 | 2950 |
| 300 | 20 | 2950 |
All dimensions are in millimeters.
Do you need guidelines for the correct handling and processing/assembly of our products? Then take a look at our downloads.
