Base plinths Insulated base plinths

Product information Insulated base plinths

Base plinths are the ideal technical and aesthetic finish for the foot of a building, e.g. when applying exterior façade insulation. Insulated base plinths are available in standard lengths of one metre and in various standard heights. As it is simple to process the 20-mm-thick panels, shims can easily be cut to size and applied accordingly. The plinths do not have to be sealed thanks to the precise cut-off point. Insulated base plinths have EPS or XPS insulation. If technically possible, other insulation materials can be discussed and subsequently utilised. Holonite can provide all requisite information about how to treat and process the base plinths correctly.

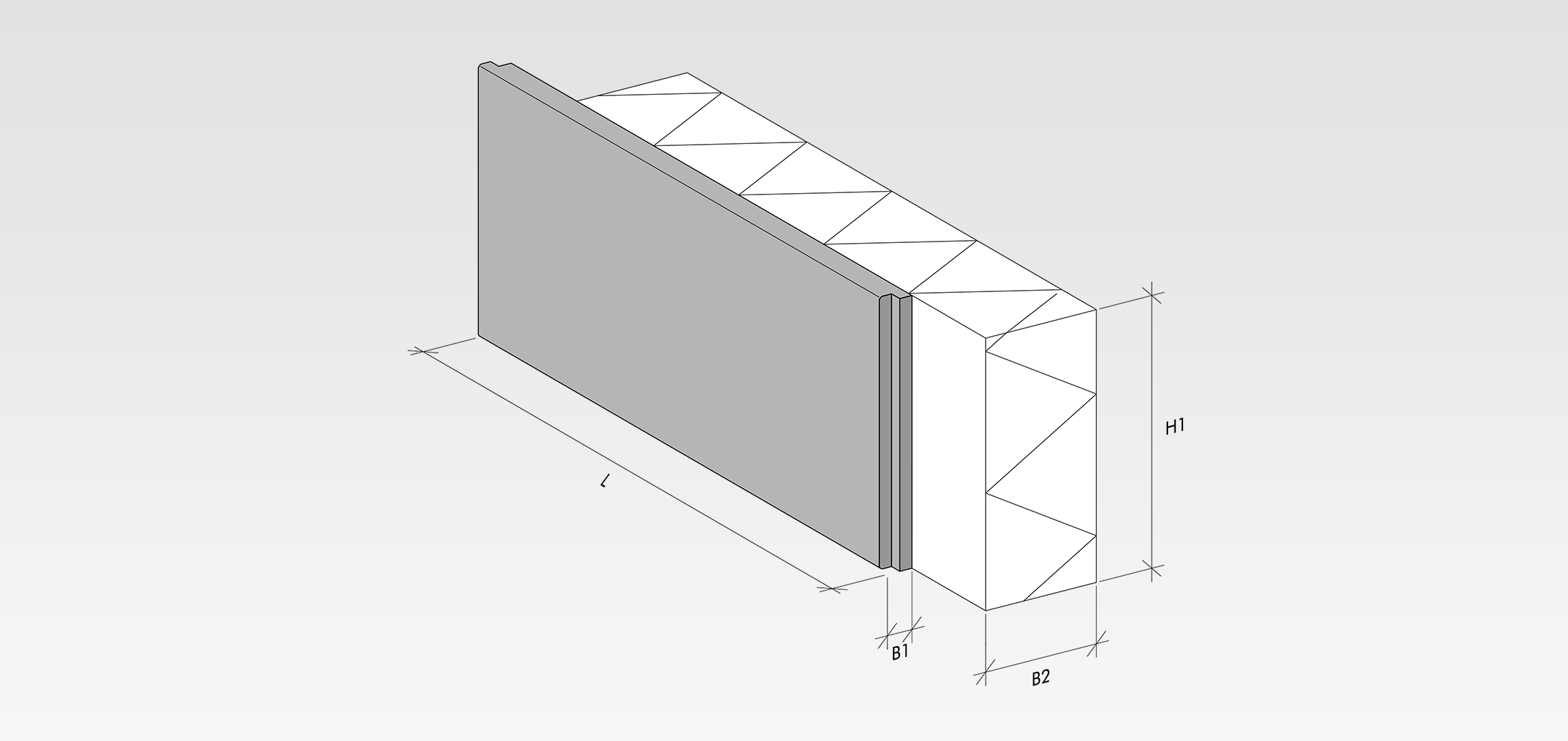

Dimensions

To CAD & Specification Service
Width (B1) Width (B2) Height (H1) Length (L)
20 On request 200 997
20 On request 300 997
20 On request 400 997
20 On request 500 997
20 On request 600 997

All dimensions are in millimeters.

Colours The product is available for color and textures

Basic colors
  • 1White
  • 5Earth brown
  • 6Light grey
  • 7Anthracite
  • 11Sand yellow
  • 20Dark grey
  • 23Brown grey
Natural
  • 14Natural red brown
  • 15Natural black
  • 16Natural sand yellow
  • 21Natural dark grey
  • 25Natural brown grey
Texture
  • 8Tarente
  • 10Terra
  • 12Sabbia
  • 13Savona
  • 22Misto
  • 24Marrone

Download Documentation

Do you need guidelines for the correct handling and processing/assembly of our products? Then take a look at our downloads.

Brochure Download

Order products

That is possible, send us your order and we will contact you as soon as possible.
